TCS Controls is the Malaysia Magnetic authorized distributor located Selangor. The Magnetic Access-Pro-H
barrier gate offers 6m locking width and an optional barrier to prevent unauthorized entry → Request a quote
now!
For special security requirements
With its barrier gate width of up to 6.0 m and the option for a boomskirt with climb-over prevention
up to a height of 1.8 m, the Access Pro-H is the ideal solution for all entrances that require
effective prevention of unauthorised pedestrian access in addition to controlled vehicle access.
The control system of the Magnetic Access Pro-H barrier gate offers a wide range of functions and numerous
expansion
potentials through the use of plug-in modules. There are five slots for, e.g. an Ethernet
interface, a radio module or a counting module for determining the number of parking spaces
still available. All inputs and outputs can be individually configured by the user. Users can
choose from numerous input and output functions. The opening and closing times can each be
selected from three levels independently of one another.
Barrier gate width of up to 6.0 m
The Magnetic Access Pro-H barrier gate is suitable for controlling entrances and lanes with a maximum lane
width of
6.0 m

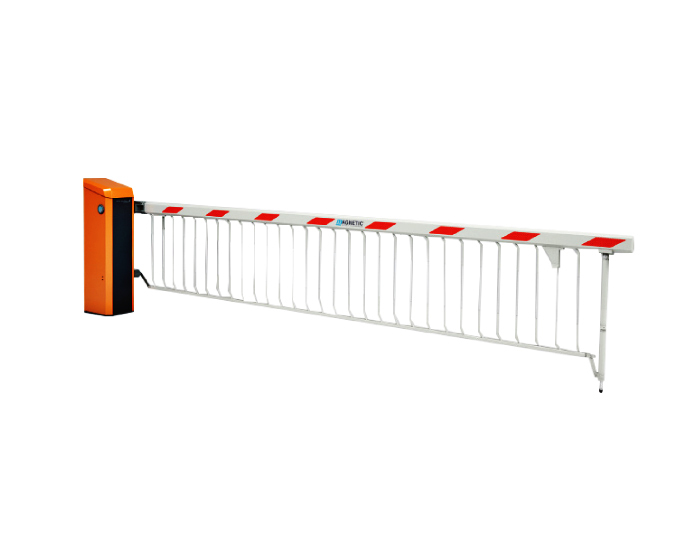

Boom skirt and climb-over prevention
The Access Pro-H not only regulates traffic but, with the optional security boom skirt, also
effectively stops unauthorized pedestrian access to security-relevant areas.
Approved for use with movement of persons
Thanks to its low impact forces and safety settings, when the legally required safety equipment
has been installed, the Access Pro-H is approved for use wherever the movement of persons cannot
be ruled out for structural reasons.
Technical data Access Pro-H
Barrier gate width Max. 6,0 m
Opening/closing time 4,0 s
Power consumption Max. 25 W
Drive technology MHTM™
Voltage 85 – 264 VAC, 50/60 Hz
Duty cycle 100%
Housing dimensions (L x W x H) 315 x 360 x 1115 mm
Enclosure rating IP 54
Temperature range -30 to +55 °C
Weight 44 kg
Features Access Pro-H
Standard colours RAL 2000, 9006, 9007
VarioBoom barrier arm MicroBoom
Control system MGC Pro
Integrated 2-channel detector for induction loops Standard
Modular expansion of control system Freely expandable
Variable I/O assignment Standard
No. of digital inputs 8
No. of relays/digital outputs 6/4
Input for safety light barrier with test Standard
Selectable closing speed Standard
Selectable opening speed Standard
Options Parking Pro
Special colours x
Folding boom x
Boom extension set x
Support post x
Breakaway flange x
Boom drop contact x
Boom interlock x
Boom lighting red x
Illumination strip red/green x
Cover illumination x
Key-operated switch x
Radio module x
Ethernet module x
RS485 module x
CAN module (counting) x
Second detector module x
GSM module x
Photoelectric safety switch x
Battery backup x
