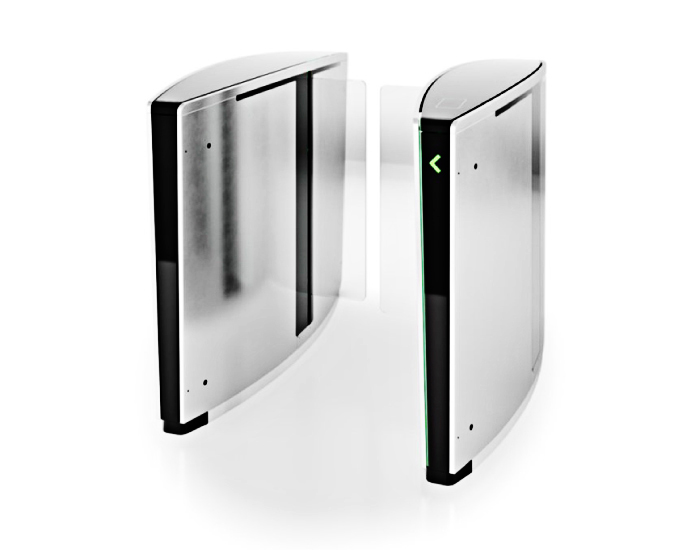

Boon Edam Speedlane Lifeline Slide Flap Barrier

The Lifeline Speedlane Slide flap barrier has been designed with a curved cabinet to allow for a quick, sliding motion of the glass wings, as well as showcasing intuitive coloured LED lights which effortlessly glides along a glossy glass top, guiding users from entry through the authorisation and onto the exit onwards. This product has proven to be a popular choice for those who are unwilling to compromise on security or design. The Lifeline Speedlane Slide can be installed as a single or multi-lane set up and offers:

Intuitive approach detection

Intelligent user guidance

Tailgating detection

Smooth, sliding-motion glass barriers

V-shaped, tapered cabinets with ergonomic design and short footprint

Premium quality materials

Flexible lane configurations

Low-energy, “sleep” mode

Universally understood and proven display symbols

Capacity (per minute in one direction)
20–30; dependent on access control system.

Standard unit size (w x l x h)
312 x 1440 x 1035 mm.

Standard dimensions
980 mm door wing height, 510 mm passage width, two wings.

Level Up high
1200–1800 mm door wing height, 510 mm passage width, two wings.

Level Up wide
980-1800 mm door wing height, 910 mm passage width, suitable for wheelchair use width, two wings.

SECURITY Security level
Medium - detect

Level Up Security Extra jump-over detection, sound module, Tailgate+

SAFETY Standard
Fail-safe operation, fire alarm connection, safety sensors

AESTHETICS Standard finish
Stainless Steel

Level Up aesthetics
Other colours and branding

TECHNOLOGY Power Supply
110-240 VAC, 50 / 60 Hz

Operating Power
80W

Operating temperature
-5°C / +23°F to +40°C / +104°F

Weight
330 Kg

COMFORT Intuition
Approach sensors, Feedback signals Lifeline LED guidance
