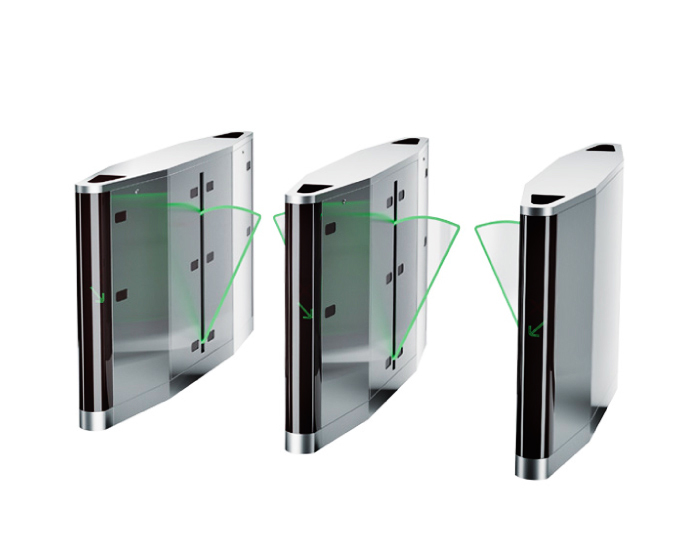

MAG FLB140 Flap Barrier

Full opening clearance.
Flap wing retracted into the housing does not take up any space to achieve maximum passage clearance. This allowed user to pass through with small and medium size luggage

Safety function.
By default flap wing will autoreverse if IR sensor detected obstacle within the flap wing area. This avoid flap wing to accidentally hit onto to user. There is green light lining effect along the edge of the flap wing to ensure flap wing is easily visible.

Anti-tailgating.
As a second option, flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.

Security function. If unauthorized access is detected
the green light lining on acrylic wing will become red color. This is to make it easy and obvious for security guard to identify security breach at flap barrier.

Auto close timer protection.
Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

Robust design.
Flap barrier offers the most efficient opening and closing. Limited movement trajectory of flap wing reduces the possibility of damage by vandalism. Simplified control panel does not require any programming thus more stable.

Emergency evacuation.
During fire alarm, access control reader can continuously hold the dry contact to trigger all flaps to open. This eliminates the need for additional wiring work for external trigger signal from fire alarm. Flap wing will automatically close back once access reader releases the dry contact. This allows access control system to immediately open the gate for fast evacuation during emergency alarm. During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.

LED indicator function.
Manual LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).

Easy integration.
Reader holder bracket is available for installing RFID reader underneath acrylic cover plate. LCD screen, bar code scanner or fingerprint reader can be installed on top of arylic.

Cabinet dimension:
1390 (L) x 280 (W) x 1000 (H) mm

Stretching-out flap length:
275 mm

Cabinet material:
# 304 stainless steel

Switching power supply:
AC220±15%V 50Hz or AC110±15%V 60Hz

Motor voltage:
DC 12V (brush motor)

Access control integration
Dry contact (N.C) 1 sec trigger pulse to open gate. Gate automatically close back after IR sensor confirmed user exited the lane.
Dry contact (N.C) continuously more than 3 sec to continuous open gate. Gate automatically close back after dry contact released to become N.O. Access mode Bidirectional

Optimal flow rate:
20 to 30 people per minute

Flap opening/closing time:
Fastest is 0.8s. Manually adjustable by turning knob. Reset time when power on 3s

Working environment:
Indoor only

Working temperature:
25℃ - 50℃

Relative humidity:
≤ 90%

Mean time Before failure:
(MTBF) 3.5millions
