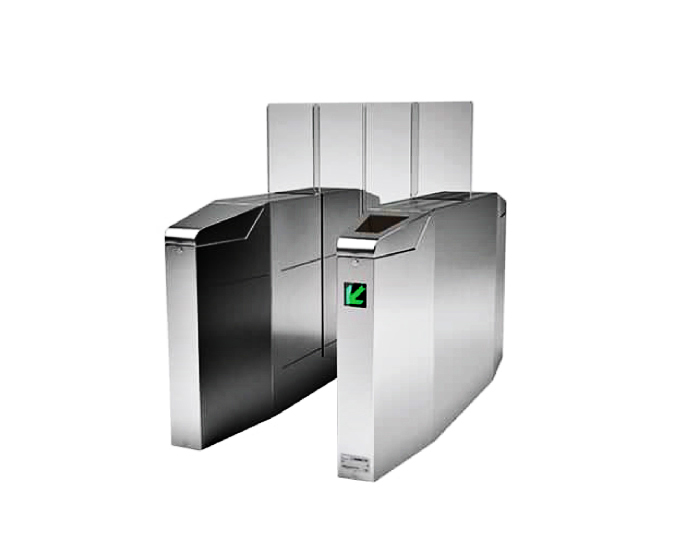

For medium and high security requirements
For access control, steering visitors, and passage into secured areas - MPH
wing gates are the
ideal
solution for the rapid separation of persons when high security is required.
Variants with
enlarged
passage widths also make the MPH suitable for wheelchairs, prams, and the
transport of
materials.
Passage takes place without contact. Photoelectric switches reliably detect
users and open the
wings
before they come into contact with them. The barriers close automatically
after passage. The
sensitive impact detection of the MHTM™ drive ensures maximum personal
safety. In addition, the
photoelectric switches contribute towards security: they register the
passage of persons
attempting
to follow through, passage in the wrong direction, or the lack of
authorization and trigger an
alarm. The wing gates can be used bi-directionally and can be regulated with
all common access
control systems. The barrier elements are available with toughened or
laminated safety glass.
High separation security
The high gate elements prevent climbing over and thus effectively delimit
areas from one
another.
The desired level of security can be individually adapted via differing gate
heights.
Innovative drive technology
The MHTM™ drive unit is maintenance-free, energy-efficient and quiet.
Sensitive impact detection
ensures maximum personal safety.
Reliable processes
Photoelectric switches in the passage reliably detect persons and objects.
They enable
non-contact
passage and trigger an alarm in the case of improper use.
Technical data
MPH 112 (Standard)
Passage width
520 mm
Gate heights
1200, 1500 or 1800 mm
Opening/closing time
0,6-1,2 s
Drive technology
MHTM™
Voltage
110-240 VAC, 50/60 Hz
Power consumption
Max. 100 W
Duty cycle
100%
Housing dimensions (L x W x H)
1300 x 300 x 1035 mm
Housing material
Stainless steel V2A
Enclosure rating
IP 32
Temperature range
0 to +45 °C
MPH 112 (Wide Lane)
Passage width
910 mm
Gate heights
1200, 1500 or 1800 mm
Opening/closing time
1,0-1,4 s
Drive technology
MHTM™
Voltage
110-240 VAC, 50/60 Hz
Power consumption
Max. 300 W
Duty cycle
100%
Housing dimensions (L x W x H)
1300 x 520 x 1035 mm
Housing material
Stainless steel V2A
Enclosure rating
IP 32
Temperature range
0 to +45 °C
