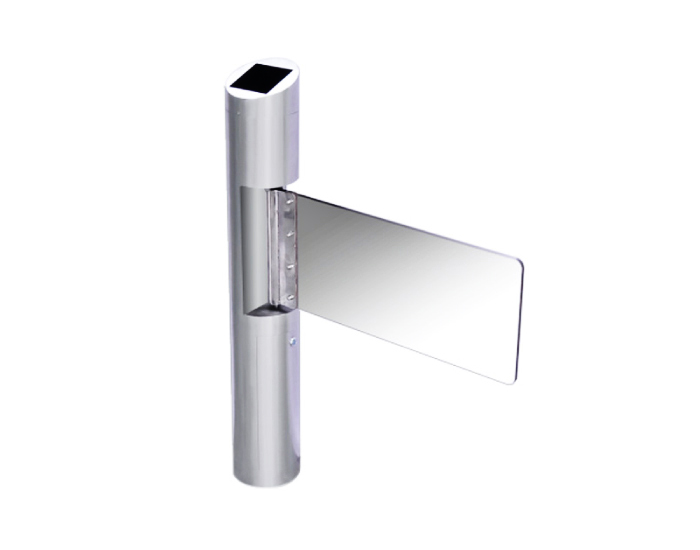

MAG SWB103 Tubular Swing Barrier

Features

1) Low maintenance
Uses DC brushless motor eliminate the need of changing carbon brush thus reducing maintenance work.

2) Better accuracy
Intelligent control board with auto calibrate that provide more accurate reading to ensure the opening and closing of gate at the same position at all time

3) Customized opening
Support bi-directional and widest 900mm opening. Gate length can be easily customized to fit site requirement. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time. Gate motor mechanism is self lock at open and close position.

4) Emergency recovery
During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
In the event of emergency such as fire alarm, swing barrier can be automatically triggered to open permanently to allow fast evacuation until the fire alarm resumed.

5) Easy integration
Can integrate with access control system.
•Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
•Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.

6) More safety Optional railing with safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user. Built-in Automatic Rebounce system (ARS) that will sense brute force and rebounce back to original position when someone kick the door by force as vandalism attempt. This will protects door leaf and gearbox from being vandalism by brute force

Cabinet dimension
168mm (Diameter) x 1050mm (H)

Weight
30 kg

Default gate length (transparent arylic)
450mm

Cabinet material
# 304 stainless steel, 2.0 mm

Power supply
AC220 ±10%V/50 ±10%HZ

Motor voltage
DC 24V (Brushless motor)

Access device input voltage
Dry contact

Optimal flow rate
20 to 25 people per minute

Gate swing angle
90 deg per side

Gate opening speed
Programmable 0.9 - 2.8 sec

Initialization time
14 sec

Working environment
Indoor only

Working temperature
-35℃ - 75℃

Relative humidity
≤ 90%

Power Rating
30 W

IP Rating IP 52
