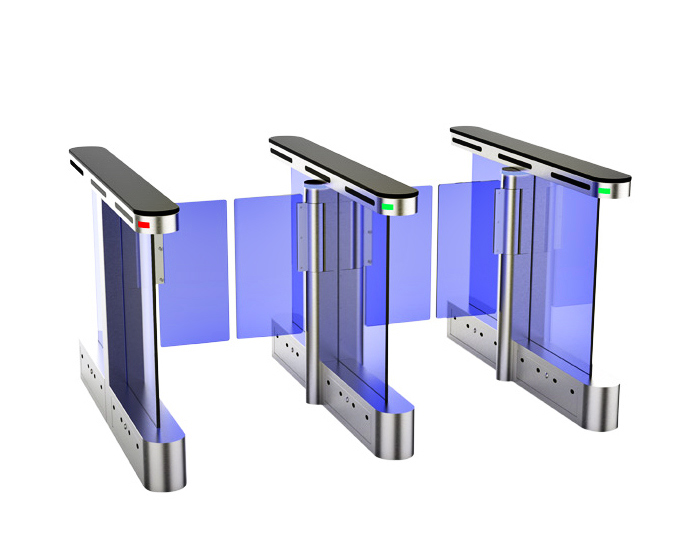

MAG SWB310 Swing Barrier

Features

1) Minimum maintenance
Use latest brushless DC motor with precision technology and improved gear that eliminate the need of changing carbon brush this reducing maintenance work.

2) Alarm notification High performance IR sensor is used to detect potential attempt of tail-gating, illegal passing and pass through direction. Alarm red light and sound will notify possible unauthorized usage as following scenario:
a) Detect second person tailgating behind the first person at minimum 10 cm distance coming from same direction.
b) Detect second person coming from opposite direction.
c) Detect first person did not flash card and attempt to go in
Standby - blue
Alarm - red
Opening (Valid access) - green

3) Double safety Door will automatically reverse once safety IR detected obstacle or when a small force is detected blocking its motion. This prevents injury caused by door hitting people. Built in Automatic Safety Clutch (ASC) technology that sense brute force and momentary disengage drive system when someone kick the door by force as vandalism attempt. This protects the motor and gearbox from being damage by the brute force. Doors will automatically realign themselves upon flashing a valid card.

4) Multiple access memory If there are 3 person flashed card, gate will count 3 people to pass through before close the door.

5) Emergency evacuation During power failure, door panel will open automatically to allow free pass through. In the event of emergency such as fire alarm, swing barrier can be manually triggered more than 3 sec to open permanently to allow fast evacuation.

Body material
Acrylic glass, SS304 stainless steel 1.5mm

Door width (single panel)
26.5cm standard lane, 45cm handicapped lane

Door opening / closing speed
Programmable 0.4 to 1.5 sec

Optimal flow rate
20 to 25 people per minute

Power supply


AC220/110V±10%, 50/60Hz Motor
DC Brushless Motor, 140W/24V

Input Connection
Dry contact pulse > 500ms

Working environment
Indoor only

Working temperature
-15℃ - 60℃

Relative humidity
≤ 90%

Passage width
580mm

Gate door material
12mm acrylic

Cabinet dimension
1400(L) x 1020(W) x 980(H) mm

Power rating
10w (standby) / 40w (operation) IP rating
IP 52
