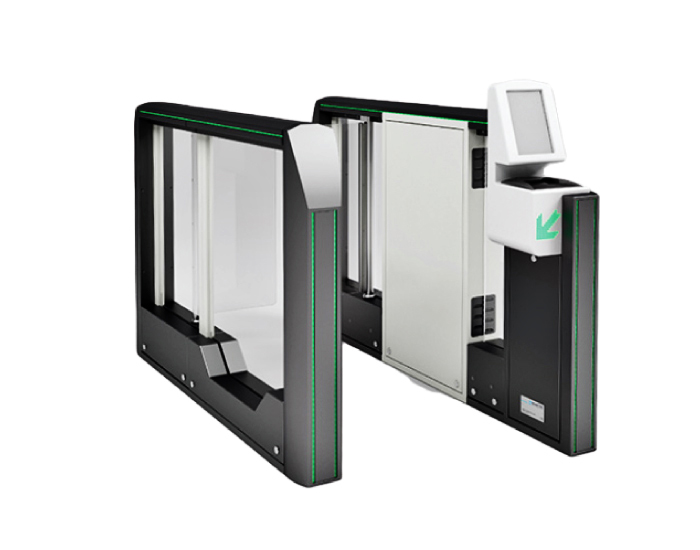

Magnetic Boarding Gate Swing Gate for Ticket Inspection

For ticket inspection on the way to the plane
We have developed our automated boarding system in order to accelerate the path of passengers from the terminal to the airplane via the security area and the departure gate. The automatic checking of boarding passes also relieves security staff of routine tasks so that they have more time for passengers who really need assistance. The low impact forces and sensitive sensors of the barrier elements ensure maximum safety for users. The low-maintenance and energy-efficient drive unit keeps costs down in the long term. Scanners for boarding passes, smartphones and other control media can be individually integrated as required. We would be pleased to provide advice!

Features

Readout of boarding cards
Numerous reading devices for printed boarding passes and digital codes on smartphones can be integrated. A display guides users through the boarding process step-by-step.

Rapid inspections
The passenger lays the boarding pass, or the smartphone with the boarding code, on the integrated scanner. The gate permits passage if the data comparison is successful. Large numbers of passengers can therefore be checked within a short time.

Simple integration
Boarding Gates from Magnetic can be equipped with all common reading devices and interfaces. Thus integration in existing data processing and security architectures is particularly simple.

Passage width
700 mm

Opening/closing time
> 0.6 s

Drive technology
MHTM™

Voltage
110 – 240 VAC, 50/60 Hz

Power consumption
Maximum 120 W

Duty cycle
100 %

Housing dimensions (L x W x H)
1750 x 150 x 1045 mm

Housing material
Stainless steel, stainless steel powder coated
Enclosure rating
IP 32

Temperature range
−25 to +45 °C
