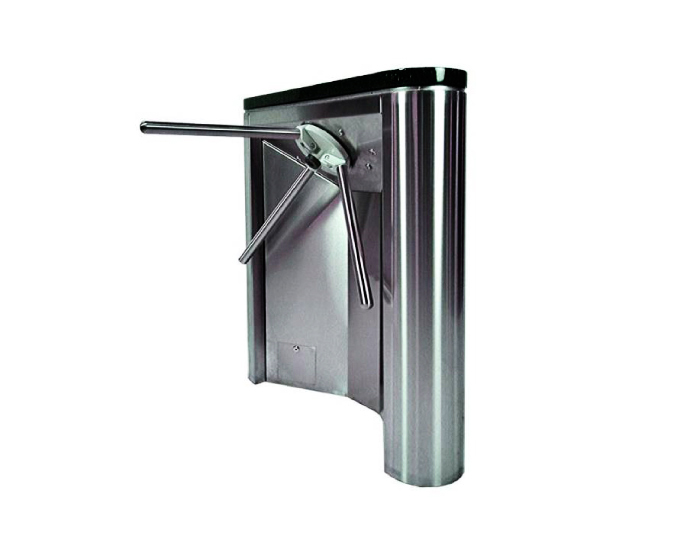

Boon Edam Trilock 900 Tripod Turnstile

Specification data - Stainless steel half-height turnstiles

Product Reference
Trilock 900 Cabinet
-

Body
Filled, angled
Filled, straight
Open

Ends
Square 900 mm unit length.

Rounded 1080 mm unit length.

Arm set Collapsible
Length: 442 mm, height: 896 mm.

Rigid Length: 387 mm, height: 872 mm.

Power failure
Fail-safe Fail-secure

Accessories
None

Authorization display with a two colour LED pictogram, arrow/cross Indicates the mechanism status.

Card reader mounting Electrical counter In one or two directions.

External soft-touch control panel Traffic display indicating one or bi-directional passage

Standard product features Size (w x h):
230 x 1000 mm.

Passage width:
437 mm (rigid armset), 492 mm (collapsible armset).

Capacity (per minute in one direction):
15–20; dependent on authorization system.

Construction:
The Trilock 900 cabinet is finished in 1.5 mm thick stainless steel, grain 240S, AISI 304, with three push bars constructed from brushed stainless steel. The top cover is detachable to allow easy access to the mechanism below and the possibility of incorporating access control systems. The mechanism is developed for a long life, using self-lubricating parts.

Power supply:
100–240 V AC, 50/60 Hz.

Maintenance:
The Trilock 900 is equipped with a modern control unit which can be accessed through a PDA. This allows the Boon Edam service teams to carry out service and maintenance to the software quickly and with minimal inconvenience to the users.

Product Options Power failure:
The fail-secure model ensures that the entrance stays closed in case of emergency or power failure. The fail-safe model will free the passage by allowing free rotation of the armset or automatically collapsing the horizontal arm down. Alternatively, if a fire alarm is connected, the fail-safe function can automatically be activated upon receipt of a fire alarm signal.
