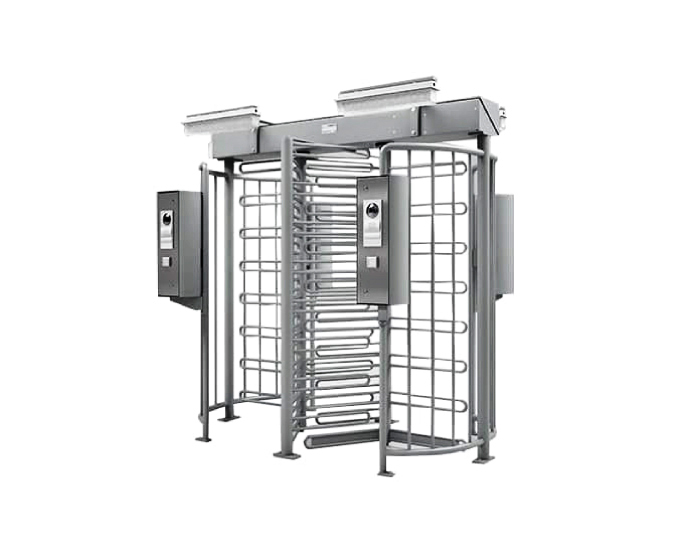

Magnetic MPT53 Double Lane Electromechanical Full Height Turnstile

Description
Two passages in one
MPT double turnstiles are the optimum solution when two separate passages need to be set up in the most limited of spaces.

Innovative drive technology
The MHTM™ drive unit operates without maintenance, energy-efficiently and quietly. Sensitive impact detection ensures maximum personal safety.

Maximum safety
Low impact forces and sensitive contact detection offer optimum protection for users.

Technical data MPT 53 3-wing

Number of wings (angle)
3 (120°)

Drive technology
electromechanical

Voltage
110-240 VAC, 50/60 Hz

Power consumption
approx. 50 W

Duty cycle
100%

Enclosure rating
IP 43

Dimensions (L x W x H)
2210 x 1318 x 2235 mm

Weight
approx. 450 kg

Temperature range
-25 to +55 °C

Technical data MPT 53 4-wing

Number of wings (angle)
4 (90°)

Drive technology
electromechanical

Voltage
110-240 VAC, 50/60 Hz

Power consumption
approx. 50 W (without accessories)

Duty cycle
100%

Enclosure rating
IP 43

Dimensions (L x W x H)
2071 x 1382 x 2235 mm

Weight
approx. 500 kg

Temperature range
-25 to +55 °C
